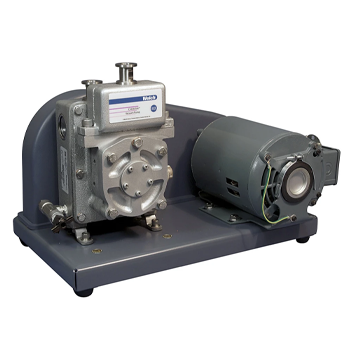

1400N Welch ChemStar Vacuum Pump (Pump Only)

$3,050.00
  • Available to Ship Today*:
  • Available to Ship Tomorrow*:
  • Available to Ship in 5 Days*
  • Available to Ship in 7 Days*:
(No reviews yet) Write a Review
SKU:
1400N
Click Here to See Specifications
Adding to cart… The item has been added

Description

Product Details

  • Low rotation speed for longer service life
  • Vital parts corrosion resistant
  • Large oil reservoir dilutes contaminants

ChemStar belt-driven Vacuum Pump is designed to tolerate harsh chemical contamination. Vital pump parts are corrosion resistant. The large oil reservoir with PTFE surfaces dilutes contamination and the low pump rotational speed lessens friction to reduce operating temperature and chemical effects. PTFE surfaces, fluorcarbon gaskets and seals, Nitrogen purge to cool and degas oil. ChemStar system comes with Gold Oil, a synthetic lubricant designed to minimize effects of chemical contaminants.

Technical Data

Model Number
1400N
1402N
1376N
Applications
Vacuum Manifolds, (Schlenk Lines), High boiling point evaporations (to 195 deg. C), General laboratory. HCl, O3, H2SO4*HBr, HOAC, SOx*Br2, F3CCO2H, H2S*Cl2, CH2O, HNO3*SF6, CF4 Fragments and other gases;
Freeze dryers, vacuum ovens. HCl, O3, H2SO4*HBr, HOAC, SOx*Br2, F3CCO2H, H2S*Cl2, CH2O, HNO3*SF6, CF4 Fragments and other gases
Freeze dryers, vacuum ovens. HCl, O3, H2SO4*HBr, HOAC, SOx*Br2, F3CCO2H, H2S*Cl2, CH2O, HNO3*SF6, CF4 Fragments and other gases
Type
Belt-Drive Vacuum Pump, chemical resistant
Belt-Drive Vacuum Pump, chemical resistant
Belt-Drive Vacuum Pump, chemical resistant
Free Air Displacement cfm (l/min.) @60Hz
0.9(25)
5.6(160)
10.6(300)
5.3(150) @ 2 torr
5.3(150) @ 2 torr
5.3(150) @ 2 torr
Ultimate Pressure
1 x10-4(0.00013)
1 x 10-4(0.00013)
1 x 10-4(0.00013)
0.05 torr
0.05 torr
0.05 torr
Pump RPM
580
525
525
Oil Capacity
0.62(0.59)
2.25(2.1)
2.5(2.37)
Motor Horsepower (watts)
1/3(250)
1/2(370)
1(750)
Adjustable Vac. / Gas Ballast
Yes
Yes
Yes
Tubing Needed
7/16(11)
13/16(21)
13/16(21)
ISO Exhaust / Intake Flange
NW 16
NW 25
NW 25
Overall Dimensions LxWxH in. (cm)
17.8x9x12.6 (45.2x22.9x32)
19.3x14.1x15.4 (49x35.3x39.1)
19.3x12.3x15.6 (49x31.2x39.6)
18.1 x 8.5 x 18.4 (45.0 x 21.6 x 46.7)
18.1 x 8.5 x 18.4 (45.0 x 21.6 x 46.7)
18.1 x 8.5 x 18.4 (45.0 x 21.6 x 46.7)
Ship Weight
71(32.3)
133(60.5)
181(82.3)
Shipping Carton Dimensions LxWxH in. (cm)
20.5x13.8x14.5 (52.1x35.1x36.8)
22.5x15.5x19.5 (57.2x39.4x49.5)
22x18x19 (59.5x45x48)
Brand:
Welch
Series:
ChemStar Series
Flow Rate:
0.9 CFM / 25 LPM
Max Vacuum:
.0001 Torr
Dimensions L:
13
Dimensions W:
11
Dimensions H:
13
StockFlag:
N
CountryOfOrigin:
JP
!
