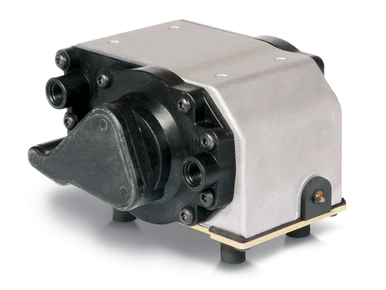

Thomas Oil-less Linear Diaphragm Compressor
- Flow Rate:
- 1.62 CFM / 46 LPM
- Max Pressure:
- 4 PSIG / 111 in H20 / 276 mbar
- Max Vacuum:
- 8 in HgV / -271 mbar
- Voltage (60 Hz): 115
- Frequency (Hz): 60
- Phase: 1-phase
- Item Dimensions:
- Length: 5 in / 127 mm
- Width: 4.6 in / 117 mm
- Height: 3.33 in / 85 mm
- Net Weight: 3.3 lbs. / 1.5 Kg
- Feature:
-
Series Configured Datasheet
- Description:
- 150058 Thomas 6025 Oil-less Linear Diaphragm Compressor / Vacuum Pump, 230/50/60/1 - Voltage: 115V AC (60 Hz)
- Dimensions LxWxH:
- 5 in x 4.6 in x 3.33 in
- Flow Rate:
- 1.62 CFM / 46 LPM
- Max Pressure:
- 4 PSIG / 111 in H20 / 276 mbar
- Max Vacuum:
- 8 in HgV / -271 mbar
- Voltage:
- 115V AC (60 Hz)
- Weight:
- 3.3
