Description

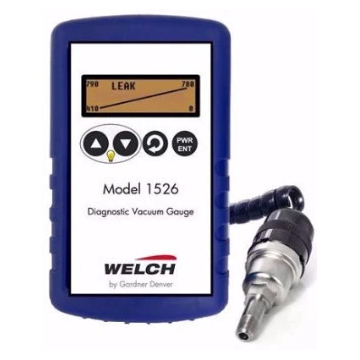

Welch Model 1526, Diagnostic Vacuum Gauge, is a rugged, portable vacuum measurement instrument designed specifically for the demands of field use. It is a highly accurate full range digital millitorr gauge using field-proven thermocouple vacuum sensor technology. Model 1526 offers several viewing options including numeric, bar graph, line graph and pump down graph display as well as vacuum analytics for leak, outgassing and pump-down rates.
Model 1526 replaces gauge 1525B-01 and gauge kit 1525K-10.
Portable
- 70 hour battery life, connects easily for accurate readings
- Strong magnet and kickstand for hands-free use
- Can be field calibrated
Accurate
- 10% of reading, 0.1 micron resolution
- Can display in 12 different measurement units (microns, millitorr, torr, mm of Hg, mbar, bar, kPa, Pa, PSIA, inches of Hg, mm and inches of water)
- Factory calibrated to NIST traceable standard
Applications
- Test vacuum pumps
- Monitor evacuation
- Leak test systems and components
Features:
- Auto Off
- On/Off soft switch
- Battery level indication
- Good/Bad sensor (tube) indication
- Self-test mode
- Field replaceable sensor
- 3 different graphical displays of vacuum pressure (pump-down, line, or bar graph)
- Vacuum analytics for leak, outgassing and pump-down
- Soft protective boot and hard travel case included with each 1526K-10
Technical Specification
Specifications
Power:
4-AA Alkaline Batteries or Micro-B USB
Vacuum Interface:
1/8â Male NPT
Sensor:
Thermocouple Vacuum Gauge Tube 1526A
Range:
1 to 800,000 microns
Units:
Microns, millitorr, Torr, mm of Hg, mbar
Bar, kPa, Pa, PSIA, in Hg, in H2O
Accuracy:
1~99 millitorr +/- 2 millitorr or 20%
100~2000 millitorr +/- 10%
2 ~ 6 Torr +/- 25%
6~250 Torr Continuous and monotonic
250 ~ 800 Torr +/- 25%
Mount
Portable Handheld
Wetted Parts:
Nickel, Copper, Constantan
Set Points:
Audible alarm (buzzer)
- Brand:
- Welch
- Dimensions L:
- 6
- Dimensions W:
- 4
- Dimensions H:
- 6
