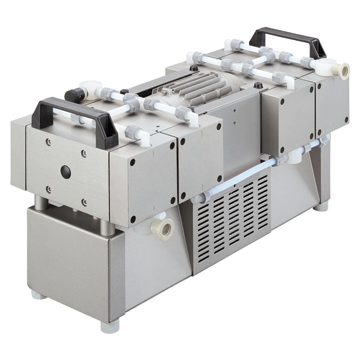

2163B-01 Welch-Ilmvac PTFE High Capacity Diaphragm Vacuum Pump 115Volts

$5,750.00
  • Available to Ship Today*:
  • Available to Ship Tomorrow*:
  • Available to Ship in 5 Days*
  • Available to Ship in 7 Days*:
(No reviews yet) Write a Review
SKU:
2163B-01
Click Here to See Specifications
Adding to cart… The item has been added

Description

Product Details

High Capacity dry 2163 series diaphragm vacuum pump. PTFE contact surfaces, deep vacuum at with high flow. Coated pump heads for moderate chemical duty, 8 heads. 115V 60HZ 6 TORR 174 LPM. Consider 2064B-01 with its PTFE pump heads for aggressive chemical duty.

Pump is cUL rated.

Specifications

Technical Data

2067
2054
2064
2163
2052
2062
Free Air Displacement @ 60 Hz, cfm (L/min)
7.8 (221)
3.4 (100)
6.1 (173)
6.1 (173)
2.3 (65)
4.2 (119)
Ultimate Pressure, torr
56
6
6
6
1.5
1.5
Motor Power, HP (kW) at 60 Hz
0.5/0.6 (0.37/0.44)
1/2 (0.37)
1/2 (0.37)
1/2 (0.37)
0.53 (0.37)
0.53 (0.37)
Inlet (Exhaust) Connection Thread NPT
NW16 - 1/4" NPT
NW16 - 1/4" NPT
NW16 - 1/4" NPT
NW16 - 1/4" NPT
NW16 - 1/4" NPT
NW16 - 1/4" NPT
Tubing Needed, I.D. in. (mm)
Hose Connector Available
1/4 (8)
Hose Connector Available
Hose Connector Available
1/4 (8)
1/4 (8)
Weight, lbs (kg)
72.3 (32.8)
40.3 (18.3)
72.3 (32.8)
72.3 (32.8)
40.3 (18.3)
40.3 (18.3)
Dimensions, LxWxH, in (mm)
21x11x12 (530x280x310)
9x15x7 (230x380x180)
21x11x12 (530x280x310)
21x11x12 (530x280x310)
9x15x7 (230x380x180)
21x11x12 (530x280x310)
115V Order Number
2067B-01
2054B-01
2064B-01
2064B-01
2052B-01
2062B-01
Brand:
Welch
Series:
PTFE Series
Voltage:
115V (60 Hz)
Flow Rate:
6.0 CFM / 170 LPM
Max Vacuum:
29.7 in HgV / 6 Torr
Dimensions L:
23
Dimensions W:
38
Dimensions H:
17
StockFlag:
N
CountryOfOrigin:
JP
!
