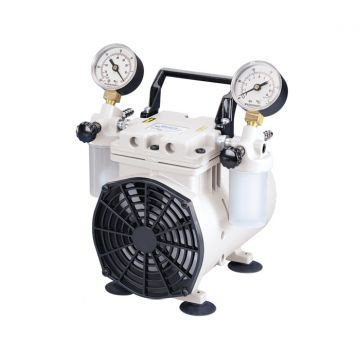

2546C-01 Welch WOB-L® Piston Pressure or Vacuum Pump 230Volts

$1,025.00
  • Available to Ship Today*:
  • Available to Ship Tomorrow*:
  • Available to Ship in 5 Days*
  • Available to Ship in 7 Days*:
(No reviews yet) Write a Review
SKU:
2546C-01
Click Here to See Specifications
Adding to cart… The item has been added

Description

Product Details

  • Economical
  • Oil Free
  • Adjustable Vacuum

Reliable WOB-L Piston pumps are perfect for many common laboratory vacuum applications. Features: Vacuum and Pressure - to 60 Torr (27.6"Hg). Includes Vacuum and Pressure Regulators and Gauges - simple to adjust and monitor vacuum level and delivery pressure. Inlet Water Trap - float ball rises to seal off pump from accidental ingestion of water. Muffler quiets pump and filters discharge air. For use with dry or aqueous vapor applications only.

Technical Data

2511
2522
2534
2546
Free Air Displacement @ 60 Hz, cfm (L/min)
0.39 (11)
0.76 (22)
1.2 (34)
1.6 (45)
Ultimate Pressure, torr
219
100
70
60
Max Pressure, PSIG
33
100
50
100
Motor Power, HP (kW) at 60 Hz
1/30 (0.025)
1/8 (0.1)
1/8 (0.1)
1/4 (0.19)
Inlet (Exhaust) Connection Thread NPT
3/16 (5)
3/16 (5)
3/16 (5)
1/4 (7)
Tubing Needed, I.D. in. (mm)
3/16" ID Hose
1/4
1/4
1/4
Weight, lbs (kg)
5 (2.3)
11.7 (5.3)
11.7 (5.3)
13.8 (6.3)
Dimensions, LxWxH, in (mm)
7.6x4.5x7.5 (190x110x190)
8.1x8.8x10 (210x220x250)
8.1x8.8x10 (210x220x250)
10x7.5x9 (250x190x80)
Brand:
Welch
Series:
WOB-L® 2500 Series
Voltage:
230V (60 Hz)
Flow Rate:
1.6 CFM / 45 LPM
Max Vacuum:
27.6 in HgV / 60 Torr
Dimensions L:
15
Dimensions W:
13
Dimensions H:
13
!
