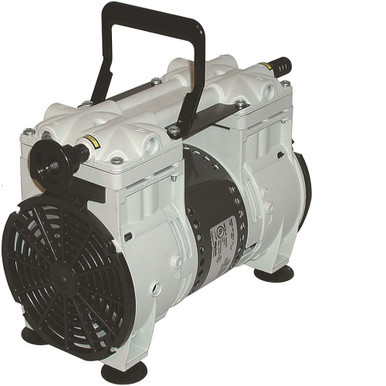

2563B-24 Welch WOB-L® Dry Vacuum Pump 115Volts

$2,170.00
  • Available to Ship Today*:
  • Available to Ship Tomorrow*:
  • Available to Ship in 5 Days*
  • Available to Ship in 7 Days*:
(No reviews yet) Write a Review
SKU:
2563B-24
Click Here to See Specifications
Adding to cart… The item has been added

Description

Product Details

  • Economical
  • Oil Free
  • Adjustable Vacuum

Specifications

Technical Data

2561
2562
2563
2567
2580
2581
Free Air Displacement @ 60 Hz, cfm (L/min)
2.3 (65)
2.3 (65)
2.3 (65)
3.5 (100)
3.5 (100)
3.5 (100)
Ultimate Pressure, torr
5
7.5
5
60
9
5
Motor Power, HP (kW) at 60 Hz
1/3 (0.25)
1/3 (0.25)
1/3 (0.25)
1/3 (0.25)
1/3 (0.25)
1/3 (0.25)
Inlet (Exhaust) Connection Thread NPT
1/4
1/4
NW16
1/4
3/8
3/8
Tubing Needed, I.D. in. (mm)
1/4 (7)
3/8 (10)
1/4 (7)
1/4 (7)
3/8 (10)
1/4 (7)
Weight, lbs (kg)
16.7 (7.5)
16.7 (7.5)
16.7 (7.5)
16.7 (7.5)
22.5 (10.3)
24.5 (11.1)
Dimensions, LxWxH, in (mm)
17.3x6.5x10.5 (440x170x270)
17.0x7.5x12 (430x190x310)
17.3x6.5x10.5 (440x170x270)
15x10x10 (380x250x250)
13.3x7.8x11.7 (340x200x300)
17x7.5x12 (430x420x190)
115V Order Number
2561B-50
2562B-01
2563B-24
2567B-50
2580B-01
2581B-50
Brand:
Welch
Series:
WOB-L® 2500 Series
Voltage:
115V (60 Hz)
Flow Rate:
2.3 CFM / 65 LPM
Dimensions L:
15
Dimensions W:
11
Dimensions H:
12
!
