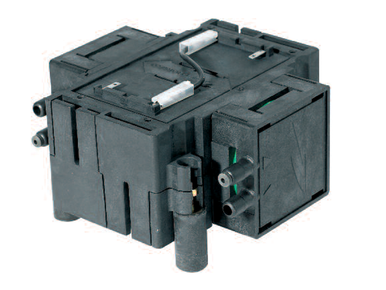

Thomas Oil-less Linear Diaphragm Compressor / Vacuum Pump, 115/60/1
- Flow Rate:
- 12.5 LPM
- Max Pressure:
- 12.5 PSIG / 121 in H20 / 300 mbar
- Max Vacuum:
- 10.3 in HgV / -350 mbar
- Voltage (60 Hz): 115
- Frequency (Hz): 60
- Phase: 1-phase
- Item Dimensions:
- Length: 4.21 in / 107 mm
- Width: 4.37 in / 111 mm
- Height: 2.56 in / 65 mm
- Net Weight: 2.2 lbs. / 1 Kg
- Feature:
-
Series Configured Datasheet
- Description:
- 6440006 Thomas LM15 Oil-less Linear Diaphragm Compressor / Vacuum Pump - Voltage: 115V AC (60 Hz)
- Dimensions LxWxH:
- 4.21 in x 4.37 in x 2.56 in
- Flow Rate:
- .44 CFM / 12.5 LPM
- Max Pressure:
- 12.5 PSIG / 121 in H20 / 300 mbar
- Max Vacuum:
- 10.3 in HgV / -350 mbar
- Voltage:
- 115V AC (60 Hz)
- Weight:
- 2.2
