Thomas Oil-less Linear Diaphragm Compressor / Vacuum Pump, 12v/50Hz
- Flow Rate:
- .95 LPM
- Max Pressure:
- 8.7 PSIG / 241 in H20 / 600 mbar
- Max Vacuum:
- 5.9 in HgV / -200 mbar
- Voltage (50 Hz): 12
- Frequency (Hz): 50
- Phase: 1-phase
- Item Dimensions:
- Length: 2.83 in / 72 mm
- Width: 2.09 in / 53 mm
- Height: 1.81 in / 46 mm
- Net Weight: .44 lbs. / .2 Kg
- Feature:
-
Series Configured Datasheet
- Description:

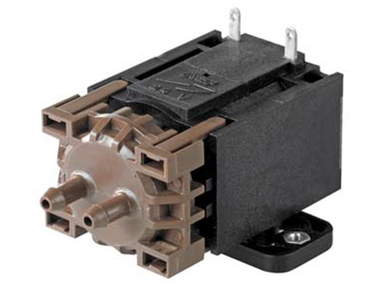

- 9344310 Thomas LMG4 Oil-less Linear Diaphragm Compressor / Vacuum Pump - Voltage: 12V AC
- Dimensions LxWxH:
- 2.83 in x 2.09 in x 1.81 in
- Flow Rate:
- .95 LPM
- Max Pressure:
- 8.7 PSIG / 241 in H20 / 600 mbar
- Max Vacuum:
- 5.9 in HgV / -200 mbar
- Voltage:
- 12V DC
- Weight:
- 0.44
